CHRIS-MARINE®

Ultrasonic Cleaning System / UCS 4600

Cleaning system for large industrial and marine cleaning requirements, including engine parts.

  • Ultrasonic 4600 is electronically driven and has 112 PZT transducers generating ultrasound waves.
  • The waves vibrate the cleaning fluid at very high velocity, thereby creating a superior cavitation process.
  • The high-quality electrical components are developed and produced in Germany.
  • The conical transducers are made of high-quality alloyed V4A stainless steel.
  • Optimal sonication of the tank is achieved through the specific arrangement of the transducer elements which operate at a standard frequency of 25 kHz.
  • The system is powered by 4 ultrasonic generators.

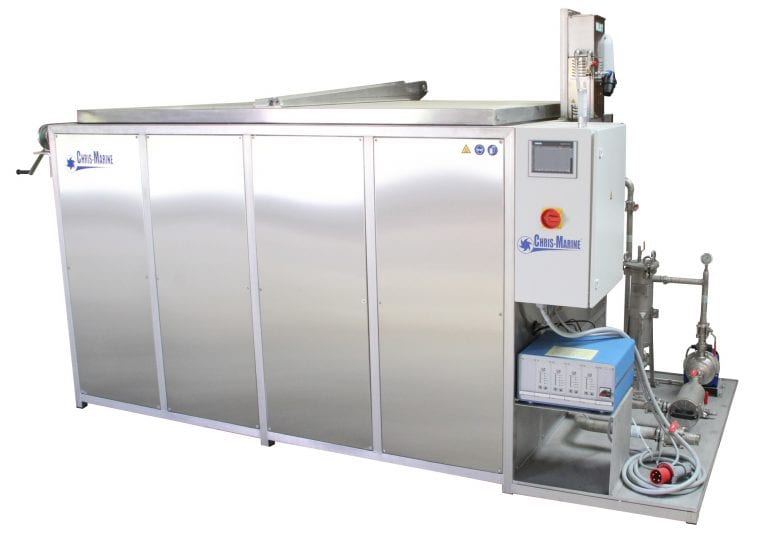

Ultrasonic Cleaning System - USC 4600

Ultrasonic Cleaning System - USC 4600

Ultrasonic Cleaning System - USC 4600

UCS4600 Box

UCS4600 Box

UCS 4600 is an Ultrasonic Cleaning System for handling of larger industrial cleaning requirements, including engine parts, like:

  • Intercoolers
  • Valve spindles
  • Fuel injectors
  • Cylinder heads
  • Pistons
  • Heat exchangers

The Ultrasonic Cleaning System UCS 4600 offers several benefits to its users:

  • Efficient and gentle cleaning method extending the lifetime of costly engine parts
  • High-quality transducers and generators integrated in the system, providing ultrasonic efficiency leading to reduced cleaning time
  • Generators featuring automatic and constant stabilization of the adjusted output power
  • Extended lifetime of the cleaned parts
  • Integrated filtration unit including oil separator to increase the lifetime of costly chemicals
  • User-friendly and easy operation of the system setting thanks to the color touch panel

Engine parts cleaning is a critical aspect of maintaining engine performance. Here’s why it’s so important:

Preventing Damage and Wear

Over time, dirt, grime, carbon buildup, oil sludge, and other contaminants accumulate in engine components. If these contaminants are not removed, they can cause increased friction, blockages, or abrasive wear, leading to engine damage or failure. Cleaning parts helps maintain smooth operation and reduces wear on critical components like pistons, valves, and bearings.

Maintaining Efficiency

A clean engine runs more efficiently. Carbon deposits and buildup on engine parts, such as the intake valves or fuel injectors, can disrupt fuel flow and combustion processes. Cleaning these parts ensures the engine operates at optimal performance, improving fuel efficiency, reducing emissions, and maximizing power output.

Improving Combustion

Engine components like the fuel injectors, combustion chambers, and cylinder heads can become clogged with carbon and other residues over time. This hampers the combustion process, reducing engine performance, efficiency, and overall power. Cleaning these parts restores proper combustion, leading to smoother engine operation.

Enhancing Durability

Regular cleaning helps reduce the risk of premature wear and tear. Engine parts that are free of contaminants and buildup last longer because they face less stress and strain. By removing particles that can cause corrosion or impede movement, parts can perform optimally for a much longer time.

Preventing Overheating

Dirt and carbon buildup in cooling system components, like radiators or oil coolers, can impair the system’s ability to dissipate heat properly. Cleaning these parts ensures that the cooling system works efficiently, preventing the engine from overheating, which can lead to serious damage.

Preventing Blockages and Leaks

Contaminants like dirt and sludge can clog small passages, hoses, or filters, leading to blockages or fluid leaks. This can cause loss of pressure or fluid, which may result in engine performance issues, overheating, or even failure. Regular cleaning helps prevent these problems.

Improving Diagnostics and Maintenance

When parts are cleaned and removed of contaminants, it’s easier for technicians to inspect for damage or wear. Clean parts allow for more accurate diagnostics, making it easier to detect issues that could affect engine performance or safety.

Reducing Emissions

A clean engine operates more efficiently and burns fuel more completely. This leads to lower emissions, which is important for meeting environmental standards and ensuring the vehicle is running cleanly.

In summary, cleaning engine parts helps maintain peak performance, enhances the lifespan of the engine, prevents costly repairs, and ensures that the engine operates in a safe and environmentally responsible manner. Regular cleaning is a key part of preventive maintenance, helping to keep the engine running smoothly for years to come.

Ultra Rinse Intercooler, a versatile cleaning chemical

Ultra Rinse Intercooler is a high alkaline cleaning chemical suitable for all types of metals, including aluminum, titanium, brass and copper.



Learn more about or cleaning products here.

Learn more about us by watching our corporate video!

Technical specification
Power supply 400 V, 50-60 Hz, 3 phase +neutral + PE
External dimensions (LxWxH) 3930 x 1500 x 3685 mm
Internal dimensions (LxWxH) 2150 x 1200 x 1200 mm
Ultrasonic frequency 25 kHz
Ultrasonic power 40-100% of nominal power
Transducer set up 4 modules of 2400 W with 28 PZT elements each
Max. load weight 2000 Kg
Working tank capacity Approximately 3000 l
Working height 1800 mm
Temperature range 30-80˚C
